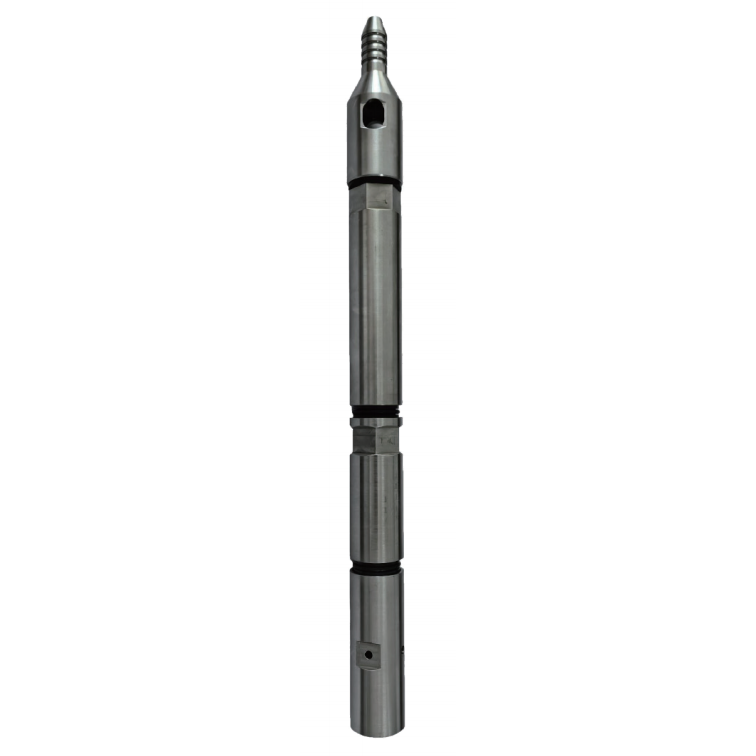

Applicable in various extreme working conditions that feature high temperatures, high pressures, strong vibrations and strong corrosion; widely used whether in oil or gas wells to serve various well-testing purposes, including static pressures and flow pressures, for evaluation of well capacity, reservoir characteristics and other relevant parameters.
Highlights
• Incorporated with a highly integrated IC chip as the MCU chip, watchdog monitoring technology and multi-tiered safety measures; simplified circuit design that ensures a consistently high and reliable work performance.
• Equipped with a Swiss high-end pressure sensor characterized by the high consistency in work performance, high sensitivity, limited time lag and high accuracy in measurement; housed in a high-strength casing to ensure that the sensor can deliver a consistently good work performance under strong impacts and corrosion.
• All components, including the pressure sensor, subjected to a series of stringent temperature and impact tests for high work performance over a long term.
• Incorporated with both static and dynamic sealing techniques and a trapezoidal thread structure to ensure secure connection and effective sealing under high pressures; applicable in various oil wells to eliminate the risk of seepage even under harsh working environments.
Pressure range
9000psi(60Mpa) /12000psi(80Mpa) /15000psi(100Mpa)
Pressure accuracy
±0.1%F.S
Maximum operating temperature
150℃、175℃
Temperature accuracy
± 0.5 ℃
Temperature resolution
0.01℃
Power supply
1 set of imported lithium sulfite high-energy and high-temperature resistant batteries
Interface
USB to TTL
Data format
Time/pressure/temperature
Outer diameter
19mm(0.75in) /22mm(0.87in) /32mm(1.25in)/36mm(1.42in)
Length
304mm/465mm/465mm/476mm
Working Mode
storage
Material of outer cylinder
17-4PH/TC4
Anti-corrosion ability
Oil and water wells, gas wells
Sampling frequency
3 seconds-18 hours/point. Any setting
Power consumption
< 0 . 04mA /working < 15mA
175℃
（Maximum operating temperature） | 15000psi
（Maximum working pressure） | ±0.1%F.S
（High precision） |
